Industrial processes and machines generate such large amounts of heat that continuous dissipation is necessary for efficient operation. The heat must be to the environment, usually through a heat exchange process. That is the basis of the industrial cooling tower technology. It is interesting that despite cooling towers being devices of the 20th century, knowledge about them is actually limited. Some people even believe cooling towers are sources of pollution, yet the only thing they release to the atmosphere is water vapor.
Let's demystify cooling towers and explore their types, applications and how they contribute to industrial efficiency.
What is a cooling tower?
A cooling tower is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water’s temperature from a building. Air comes in from the sides of the tower and passes through the falling water. As the air passes through the water, heat is exchanged and some of the water evaporates. This heat and evaporated water flow out the top of the tower in the form of a fine cloud-like mist. The cooled water is collected at the bottom of the tower and pumped back into the plant or building for reuse.
Innovations in cooling tower technology focus on sustainability and performance. These include various energy-efficient designs, using advanced fans and motors. In addition, they have water-saving features through improved evaporation and water recovery systems, and intelligent control systems to ensure real-time monitoring for optimal efficiency.
Cooling towers remain the cornerstone of industrial refrigeration, and continued advances promise even greater benefits for industries around the world.
Types of Industrial Cooling Towers
After many years of development of this technology, cooling towers are available in different types and sizes. Each of these is applicable in a certain load configuration, the reason it is important to outline the options available. Note that despite the different designs, the basic function remains as that of dissipating heat from a building system or a process to the air through evaporation. Here are some categorizations.
1. Mechanical draft cooling tower
Mechanical draft cooling towers are the most widely used in buildings and rely on power-driven fans to draw or force the air through the tower. They are normally located outside the building and the air is moved by power-driven fan motors to force it go through the tower.
For the same capacity used, the mechanical draft cooling towers are much smaller than the natural draft cooling towers. This is because of the increase in cooling capacity due to increase in volume of the air being forced out by fan.
2. Atmospheric cooling tower
The atmospheric cooling towers utilize no mechanical fan to create air flow through the tower, its air is derived from a natural induction flow provided by a pressure spray.
3. Hybrid draft cooling tower
The hybrid draft cooling towers are equiped with mechanical draft fans to augment airflow. Consequenly, they are also referred to us fan-assisted natural draft towers. The intent of their desing is to minimize the horsepower required for the air movement, but to do so with the least possible stack cost impact.
4. Construction-characterised cooling tower
They are often constructed as hyperboloid, doubly-curved concrete shell structures supported on a series of concrete struts. The foundations typically consist of an inclined pond wall forming a circular 'tee' beam with a wide concrete strip.
5. Air flow-characterised cooling tower
Counter flow cooling towers have the air passage flowing directly against the flow of the water. As with the cross-flow design, water is allowed to spread out with the help of air inlet louvers. Their bottle like shape characterizes this type of cooling towers.
6. Shape characterized cooling tower
Considering the shape, there are two types: rectilinear and round mechanical draft. Rectilinear towers are constructed in cellular fashion, increasing linearly to the length and numbers of cells necessary to accomplish a special thermal performance. Instead, there are towers as the name implies, are essentially round in plan configuration, with fans clustered as close practicable around the center point of the tower.
7. Cooling tower based on method of heat transfer
All of the cooling towers described here are evaporative type towers, in that they derive their primary cooling effect from the evaporation that takes place when air and water are brought into the direct contact. At the other end os the spectrum is the Dry tower, where by full utilization of dry surface coil sections, no direct contact (and no evaporation) occurs between air and water. Hence sensible heat transfer cools the water totally.
How does an industrial Cooling Tower work?
Warm water from industrial equipment, commercial ac system or any other heat source enters the tower and spreads evenly at the top. As the water flows down the tower, the equipment fill spreads it over a large area to increase the water-air contact, thus enhancing heat transfer via evaporation. A large volume of air is constantly moving along the fill courtesy of large fans in the tower.
As evaporation takes place, the water loses heat. It eventually enters the tower sump at the bottom. The cool water then goes back to cool the initial heat source and the cycle repeats. For the sake of system dilution, of portion of the system water goes to the drain through a bleed-off valve. The makeup line feeds the cooling tower with fresh water for replenishment. You will not note these processes easily because their simultaneous occurrence creates a continuous loop.

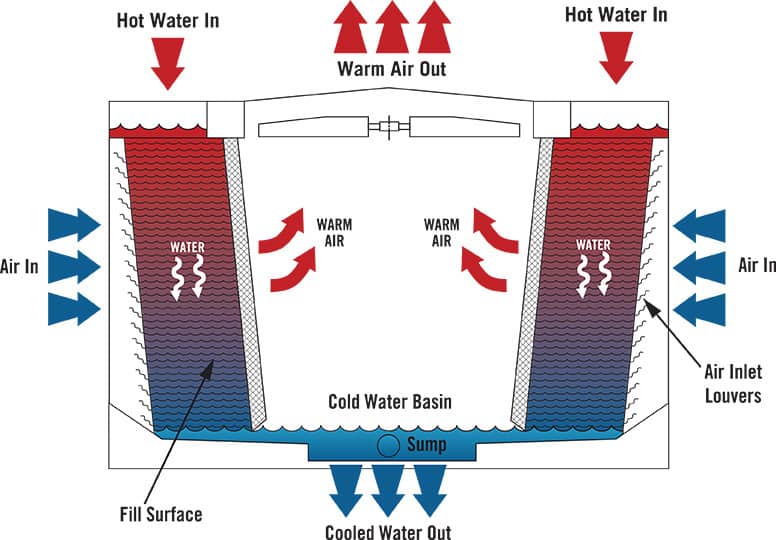

The figure below shows the process in a typical cooling tower.
Efficient operation of the Cooling Tower
Cooling towers may be generally cost-effective for industrial cooling compared to other options, but efficiency challenge can be a letdown. Monitoring the efficiency factor is crucial as it ensures the following:
- Reduced water consumption: Efficient water recycling minimizes waste.
- Energy savings: Optimized heat dissipation lowers energy costs.
- Extended equipment life: Proper cooling reduces wear and tear.
- Sustainability: Modern cooling towers incorporate materials and designs that align with green energy goals.
- Understand your cooling tower type: Select the right system for your application.
- Use chemical treatments: Prevent scale, corrosion, and biological growth.
- Monitor water loss: Regularly check bleed-off and replenish water efficiently.
Investing in advanced materials and smart monitoring systems can further enhance performance while reducing operational costs.

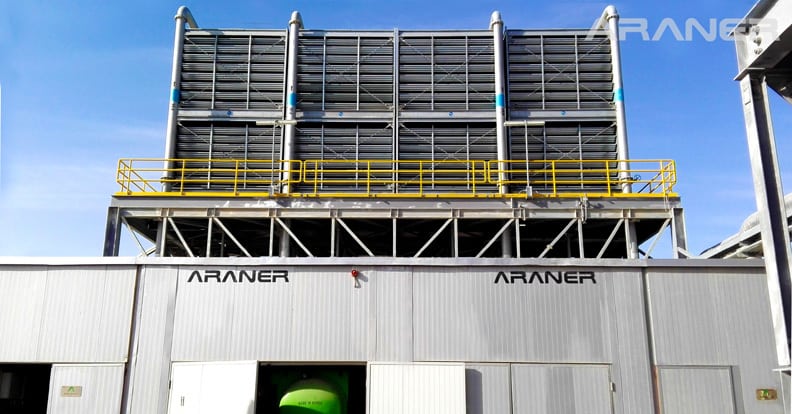

The industrial application of Cooling Towers
The cooling tower system is common in many industries, chief among them being power, commercial, HVAC and industrial. In the industrial setup, the system rejects heat from machinery, heated process material among other sources. Specifically, industrial cooling towers are common in food processing plants, petroleum refineries, natural gas plants and petrochemical plants.
Other industrial applications:
- Water cooled air compressors
- Plastic Injection & Blow Moulding Machine
- Die casting machine
- Refrigeration and chilling plant
- Cold storage
- Anodizing processes plant
- Electrical power generation plant
- Water cooled air conditioning systems and VAM machines

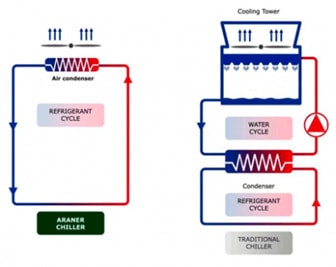

The question of Air-Cooled Chillers vs. Water-Cooled Chillers
Whenever you mention cooling towers in the context of ARANER cooling solutions, the comparison of these two systems comes up. Each has its pros and cons, but in dry areas often, air cooled chillers are more preferable. Also when the reliability of the plant is very important and the dependency on water supply must be avoided. This is usually the case for mission critical facilities such as data centers. One of the main differences between the two systems is the absence of a cooling tower in an air-cooled chiller system, bringing benefits such as less maintenance and service requirement
Cooling tower technology is vital in numerous refrigeration systems where they provide process cooling and comfort. However, you may be forced to choose a different cooling solution if upfront cost, space, noise, energy bills and water availability bother you.
At ARANER, we appreciate the suitability of cooling towers in certain cases, but we value air-cooled solutions for their ease of operation, ease of setup among other benefits. If you are unsure whether you need a cooling tower installation, contact us for more guidance.
